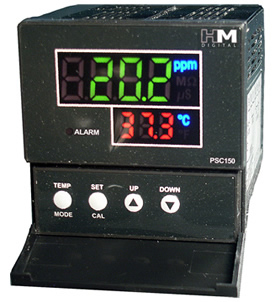

PSC-150: Extended Range EC/TDS Controller click here for a printable view of this page

Buy now


FEATURES
  • Monitors and controls TDS levels for high output commercial systems.
  • Large, bright L.E.D. display.
  • An alarm will sound if the TDS level rises above the user-set level.
  • On-screen temperature display (C/F).
  • Installs easily in minutes.
  • Includes one sensor probe (at no extra cost).
  • Protective cover also available (sold separately)



New controller includes extended range, digital calibration, on-screen temperature and tri-color display.




SPECIFICATIONS
  • EC Range: 0-9999 µS
  • TDS Range: 0 - 5000 ppm
  • Temperature Range: 1-75°C; 33-167 °F
  • Volume Modes: Gallons (default) or Liters
  • Resolution: 0.1 µS/ppm (0-999); 1 µS/ppm (1000-9999)
  • ATC: Yes (1 - 65°C)
  • Calibration: Adjustable (manual)
  • Setting: Controlled by on-screen up/down buttons
  • Relay Control: The unit will open or close a circuit via dry contacts when the ppm/µS level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device.
  • Relay Voltage: 5V
  • Alarm: Optional steady beep (set by user)
  • Display: Bright 5/8" L.E.D. display
  • Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable
  • Power supply: AC 110V / AC 220V
  • Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4 in.)
  • Monitor Weight: 476 g (1 lb .8 oz)
  • Total Weight: 680.4 g (1 lb 8 oz)
